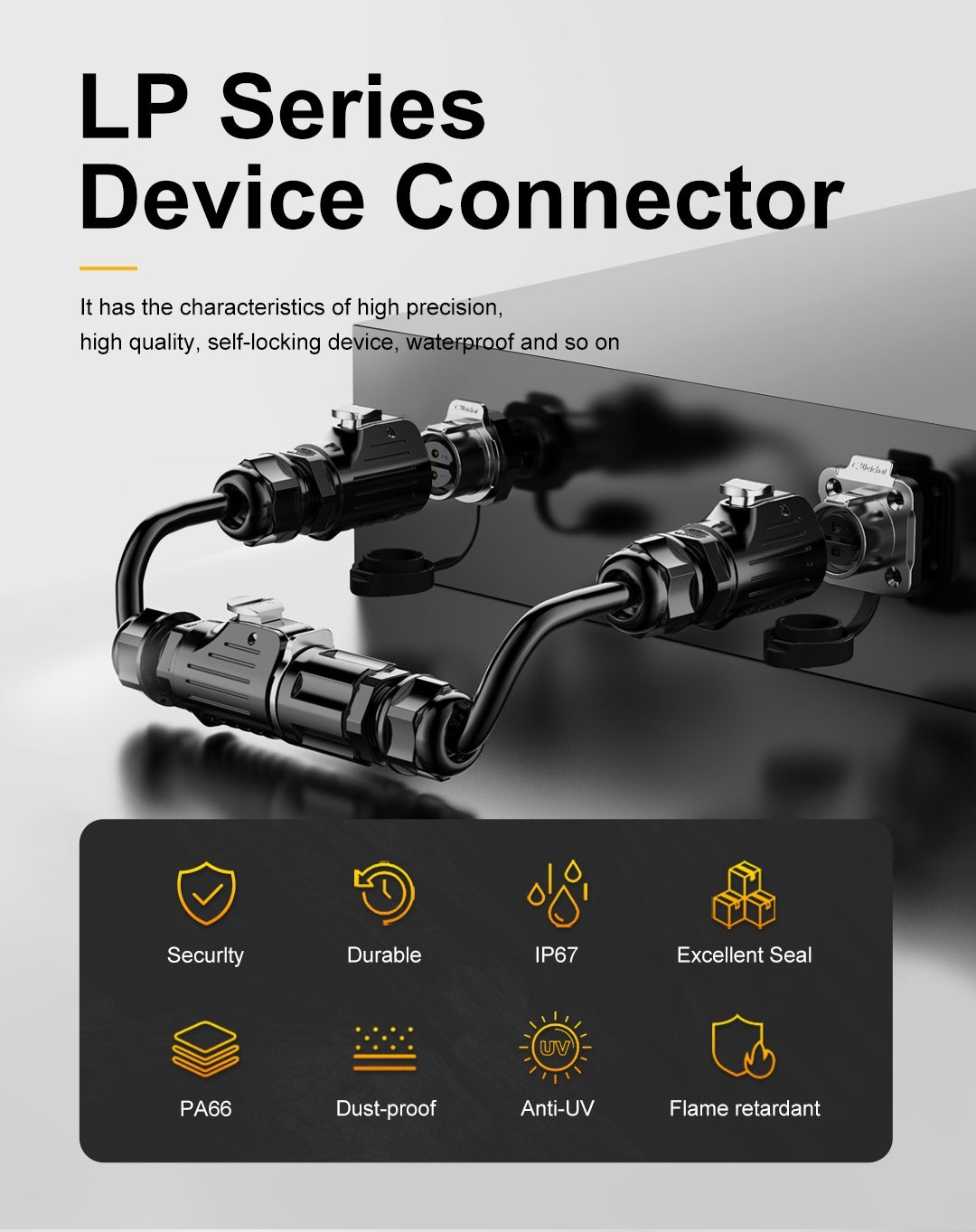

2 Pin LP Series High Power Waterproof Power Connector IP68 PA66 Details
Pin: 2/3/4/5/7/9/12 Male Femal Connector Current Rating(A): 20A Max
Material:PA66 Nylon Conenction Way: Screw-less type waterproof connector
Operating Voltage: 500V Assembly Wire: Soldering or screw fitting
Out Door UV Resistance: Pass Cable Jacket OD: 9.5-14mm
2 Pin LP Series High Power Waterproof Power Connector IP68 PA66 datasheet
| Part No. | CB-LP20-2P | CB-LP20-3P | CB-LP20-4P | CB-LP20-5P | CB-LP20-7P | CB-LP20-9P |
| Pins | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 7 Pin | 9 Pin |
| Wire Connection Way | Bonding wire | √ | √ | √ | √ | √ | √ |
| Locking wire | √ | √ | √ | √ | × | × |
| Contact member | Bonding Wire | φ2.7*2 | φ2.7*3 | φ2.7*4 | φ1.8*5 | φ1.8*7 | φ1.0*9 |
| Locking Wire | φ2.4*2 | φ2.4*3 | φ2.4*4 | φ1.8*5 | × | × |
| Applicable wire gauge | 1.5mm² /16AWG | 0.5 mm² / 20 AWG | 0.5 mm² / 20 AWG |
| Rated Cureent | 20A | 10A | 5A |
| Rated Voltage | 500V AC | 400V AC | 250V AC |
| Insulation voltage | 2000V AC | 1500V AC | 1500V AC |
| Contact impedance | ＜ 1 mΩ | ＜ 3 mΩ | ＜ 5 mΩ |
| Temperature rise | 20A 30℃↓;25A 40℃↓;30A 50℃↓ | 10A 30℃↓;15A 40℃↓;20A 50℃↓ | 5A 30℃↓;7A 40℃↓;10A 50℃↓ |
| Insulation resistance | ≥ 1000 MΩ |
| Mechanical life | ≥ 1900 Times |
| Ambient temperature | -40～+85 ℃ |
| High temperature aging | 85 ℃ / 168 h |
2 Pin LP Series High Power Waterproof Power Connector IP68 PA66 advantages:
The technical performance of this product complies with international standards such as UL and TUV. The locking of the male and female ends adopts a press-type metal lock design and has a locking safety
It has the advantages of full firmness and smooth insertion and removal, and the number of repeated insertions and removals can reach more than 1,900 times. The shell is made of high-performance PBT engineering plastic to ensure that the product has
Stable electrical performance, as well as excellent physical and chemical properties such as high-temperature resistance and corrosion resistance; Meanwhile, the conductive parts adopt a surface gold plating process, which ensures excellent electrical conductivity and can still meet the temperature rise requirements of the product in high-temperature environments.
This series of products comes in a wide range of models, offering 2 to 12 cores for users to choose from. Applicable standards: Comply with UL, TUV and other standards
2 Pin LP Series High Power Waterproof Power Connector IP68 PA66 Application
FAQ
1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are our private mold, some of our connectors are customized.We foucs on P20 Self-Locking Injection Waterproof Male Female Connector Plant Growth Light Outdoor Waterproof Equipment Connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...
2. Q: How to contact with you?
A: Please give us email or Phone number,skype or whatsapp ID if possible, we have worked for this industry more than 8 years,we have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
